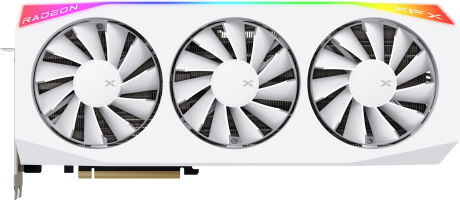

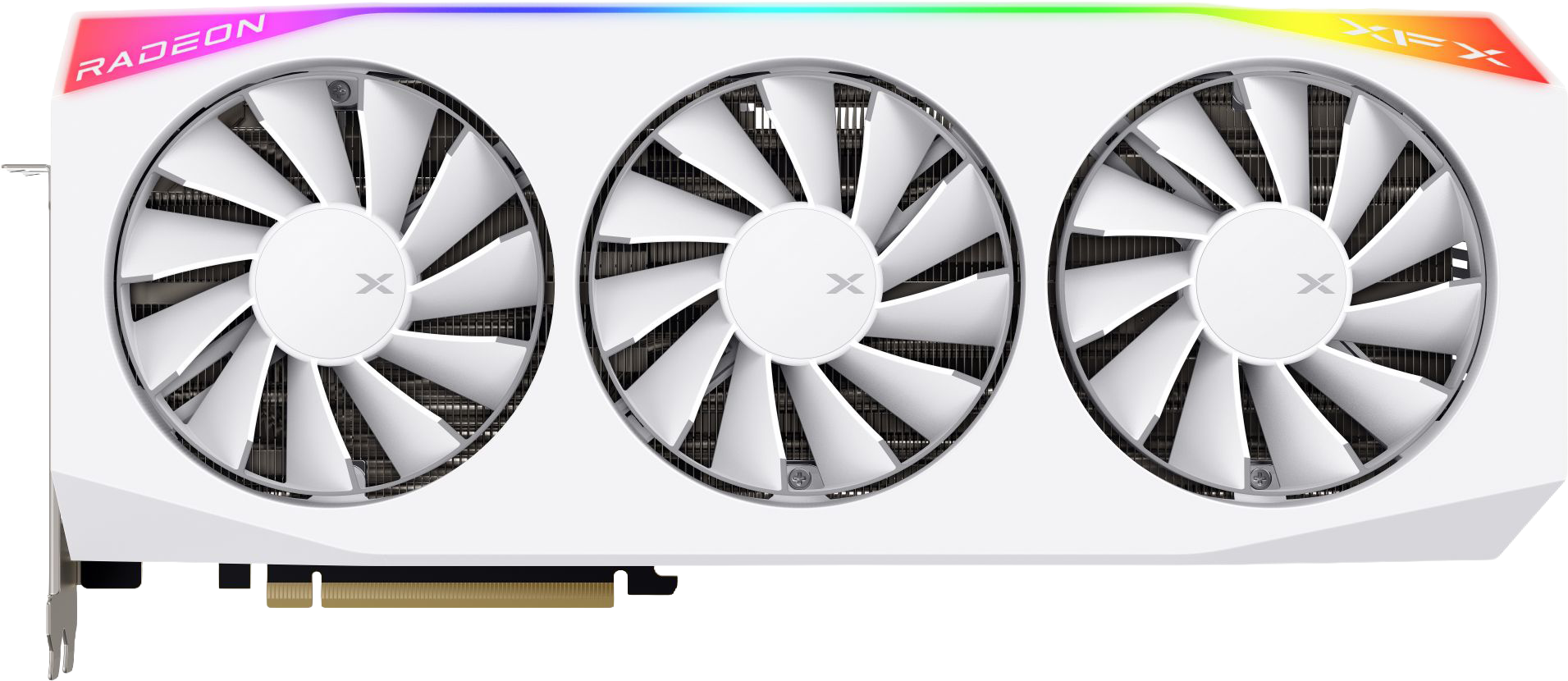

Name: XFX Mercury AMD Radeon RX 9070XT OC White Magnetic Air Edition with RGB
Brand: XFX
SKU: RX-97TMARGW9

GPUs

AMD RX 9070 XT

XFX Mercury AMD Radeon RX 9070XT OC White Magnetic Air Edition with RGB

AMD RX 9070 XT
XFX Mercury AMD Radeon RX 9070XT OC White Magnetic Air Edition with RGB
RX-97TMARGW9

Historiska priser

Specifikationer

Information
PlattformConsumer
ArkitekturRDNA4
GenerationRX 9000
Föregående generationRX 7000
GränssnittPCIe 5.0 x16
Kärna
NamnNavi 48
TillverkareTSMC
Processnod4 nm
Transistorer53900 million
Chipstorlek357.0 mm²
Densitet151.0 /mm²
GPU-kärnkonfiguration
Kärnor4096
TMU256
ROP128
Minne
TeknologiGDDR6
Storlek16 GB
Buss256 bit
Infinity Cache64 MB
Bandbredd644.6 GB/s
Hastighet20.1 Gbps

Klockfrekvenser
Basfrekvens1870 MHz 1660 MHz
Spelklockfrekvens2570 MHz 2400 MHz
Boostfrekvens3100 MHz 2970 MHz
Minnefrekvens2518 MHz
Ström
8-pin3
TDP304 w
Rekommenderad strömförsörjning800 w 750 w
Bildutgång
DisplayPort3 2.1a
HDMI1 2.1b
HDCP2.3
Dimensioner
Slot3.6
Längd360 mm
Höjd155 mm
Bredd72 mm

Modeller

Grafikkort▲	Pris▲	Boostfrekvens▲	Slot▲	Längd▲	Höjd▲	Bredd▲
ASRock Radeon RX 9070 XT Taichi White OC RX9070XT TCW 16GO		3100 MHz +4.4%	3	330 mm	146 mm	61 mm
ASRock Radeon RX 9070 XT Taichi OC RX9070XT TC 16GO	9 015 kr	3100 MHz +4.4%	3	330 mm	140 mm	61 mm
ASRock Radeon RX 9070 XT Steel Legend RX9070XT SL 16G	8 199 kr	2970 MHz	2.9	298 mm	131 mm	58 mm
ASRock Radeon RX 9070 XT Monster Hunter Wilds Edition RX9070XT MH 16G		2970 MHz	2.9	298 mm	131 mm	58 mm
ASRock Radeon RX 9070 XT Steel Legend Dark RX9070XT SLD 16G	8 427 kr	2970 MHz	2.9	298 mm	131 mm	58 mm
ASRock Radeon RX 9070 XT Challenger RX9070XT CL 16G	8 200 kr	2970 MHz	2.8	290 mm	123 mm	56 mm
Asus TUF Gaming Radeon RX 9070 XT COD BO7 Special Edition TUF-RX9070XT-O16G-COD-BO7	10 149 kr	3060 MHz +3.0%	3.2	330 mm	140 mm	62.5 mm
Asus Prime Radeon RX 9070 XT White OC Edition PRIME-RX9070XT-O16G-WHITE	8 464 kr	3010 MHz +1.3%	2.5	312 mm	130 mm	50 mm
Asus TUF Gaming Radeon RX 9070 XT OC Edition TUF-RX9070XT-O16G-GAMING	8 649 kr	3060 MHz +3.0%	3.2	330 mm	140 mm	62.5 mm
Asus Prime Radeon RX 9070 XT OC Edition PRIME-RX9070XT-O16G	7 389 kr	3010 MHz +1.3%	2.5	312 mm	130 mm	50 mm
Gigabyte Radeon RX 9070 XT GAMING GV-R9070XTGAMING-16GD	8 490 kr	2970 MHz	2.8	288 mm	132 mm	56 mm
Gigabyte Radeon RX 9070 XT GAMING OC GV-R9070XTGAMING OC-16GD	7 590 kr	3060 MHz +3.0%	2.8	288 mm	132 mm	56 mm
Gigabyte Radeon RX 9070 XT GAMING OC ICE GV-R907XGAMINGOCICE-16GD	8 345 kr	3060 MHz +3.0%	2.8	288 mm	132 mm	56 mm
Gigabyte AORUS Radeon RX 9070 XT ELITE GV-R9070XTAORUS E-16GD	9 190 kr	3100 MHz +4.4%	3	339 mm	136 mm	59 mm
PowerColor Hellhound AMD Radeon RX 9070 XT Reva Edition RX9070XT 16G-L/OC/REVA		3010 MHz +1.3%	2.9	332 mm	122 mm	57 mm
PowerColor Red Devil AMD Radeon RX 9070 XT Backplate Special Edition RX9070XT 16G-E/OC/BP		3060 MHz +3.0%	3	340 mm	132 mm	69 mm
PowerColor Red Devil Spectral White AMD Radeon RX 9070 XT RX9070XT 16G-E/OC/WHITE	10 290 kr	3060 MHz +3.0%	3.5	340 mm	132 mm	69 mm
PowerColor Red Devil AMD Radeon RX 9070 XT Limited Edition RX9070XT 16G-E/OC/LIMITED		3060 MHz +3.0%	3.5	340 mm	132 mm	69 mm
PowerColor Red Devil AMD Radeon RX 9070 XT RX9070XT 16G-E/OC	9 690 kr	3060 MHz +3.0%	3.5	340 mm	132 mm	69 mm
PowerColor Hellhound Spectral White AMD Radeon RX 9070 XT RX9070XT 16G-L/OC/WHITE	9 490 kr	3010 MHz +1.3%	2.5	327 mm	128 mm	49 mm
PowerColor Hellhound AMD Radeon RX 9070 XT RX9070XT 16G-L/OC	8 490 kr	3010 MHz +1.3%	2.5	327 mm	128 mm	49 mm
PowerColor Reaper AMD Radeon RX 9070 XT RX9070XT 16G-A	8 690 kr	2970 MHz	2.1	289 mm	111 mm	41 mm
Sapphire PURE AMD Radeon RX 9070 XT OC 11348-02-20G	8 559 kr	3010 MHz +1.3%	3.1	320 mm	120.3 mm	61.6 mm
Sapphire NITRO+ AMD Radeon RX 9070 XT OC Crimson Desert Edition 11348-10-20G	9 995 kr	3060 MHz +3.0%	3.3	330.8 mm	128.5 mm	65.7 mm
Sapphire NITRO+ AMD Radeon RX 9070 XT OC 11348-01-20G	9 272 kr	3060 MHz +3.0%	3.3	330.8 mm	128.5 mm	66 mm
Sapphire PULSE AMD Radeon RX 9070 XT 11348-03-20G	8 082 kr 8 257 kr	2970 MHz	3.1	320 mm	120.3 mm	61.6 mm
XFX Mercury AMD Radeon RX 9070XT OC White Magnetic Air Edition with RGB RX-97TMARGW9		3100 MHz +4.4%	3.6	360 mm	155 mm	72 mm
XFX Mercury AMD Radeon RX 9070 XT OC Magnetic Air Edition with RGB RX-97TMARGBA		3100 MHz +4.4%	3.6	360 mm	155 mm	72 mm
XFX Mercury AMD Radeon RX 9070XT OC Gaming Edition with RGB RX-97TRGBBB9	9 168 kr	3100 MHz +4.4%	3.6	360 mm	155 mm	72 mm
XFX Mercury AMD Radeon RX 9070XT OC White Gaming Edition with RGB RX-97TRGBBW9	8 988 kr	3100 MHz +4.4%	3.6	360 mm	155 mm	72 mm
XFX Mercury AMD Radeon RX 9070 XT OC Gaming Edition with RGB RX-97TRGBBBA		3100 MHz +4.4%	3.6	360 mm	155 mm	72 mm
XFX Mercury AMD Radeon RX 9070XT Gaming Edition RX-97TMERCB9		2970 MHz	3.6	360 mm	155 mm	72 mm
XFX Mercury AMD Radeon RX 9070 XT Gaming Edition RX-97TMERCBA		2970 MHz	7.6	360 mm	155 mm	72 mm
XFX Mercury AMD Radeon RX 9070 XT White Gaming Edition RX-97TMERCWA		2970 MHz	3.6	360 mm	155 mm	72 mm
XFX Mercury AMD Radeon RX 9070XT OC Magnetic Air Edition with RGB RX-97TMARGB9	9 990 kr	3100 MHz +4.4%	3.6	360 mm	155 mm	72 mm
XFX Quicksilver AMD Radeon RX 9070XT Magnetic Air Edition RX-97TMAQKB9		2970 MHz	3.4	350 mm	140 mm	67 mm
XFX Quicksilver AMD Radeon RX 9070XT White Magnetic Air Edition RX-97TMAQKW9		2970 MHz	3.4	350 mm	140 mm	67 mm
XFX Quicksilver AMD Radeon RX 9070XT Gaming Edition RX-97TQICKB9	8 348 kr	2970 MHz	3.4	350 mm	140 mm	67 mm
XFX Quicksilver AMD Radeon RX 9070XT White Gaming Edition RX-97TQICKW9	8 581 kr	2970 MHz	3.4	350 mm	140 mm	67 mm
XFX Quicksilver AMD Radeon RX 9070 XT Gaming Edition RX-97TQICKBA		2970 MHz	3.4	350 mm	140 mm	67 mm
XFX Swift AMD Radeon RX 9070XT Triple Fan Gaming Edition RX-97TSWF3B9	7 190 kr	2970 MHz	3.3	325 mm	150 mm	65 mm
XFX Swift AMD Radeon RX 9070XT White Triple Fan Gaming Edition RX-97TSWF3W9	7 668 kr	2970 MHz	3.3	325 mm	150 mm	65 mm
XFX Swift AMD Radeon RX 9070 XT Triple Fan Gaming Edition RX-97TSWF3BA		2970 MHz	3.3	325 mm	150 mm	65 mm
Acer Radeon RX 9070 XT Nitro OC DP.Z4DWW.P01		3100 MHz +4.4%	2.5	295 mm
Sapphire NITRO+ AMD Radeon RX 9070 XT OC PhantomLink Edition 11348-08-20G	11 644 kr	3060 MHz +3.0%	3.3	330.8 mm	141.3 mm	65.7 mm
Sapphire NITRO+ AMD Radeon RX 9070 XT OC PhantomLink Polar Edition 11348-09-20G	11 223 kr	3060 MHz +3.0%	3.3	330.8 mm	141.8 mm	65.7 mm
Acer PREDATOR BiFrost Radeon RX 9070 XT OC		2970 MHz

Plattform	Consumer
Arkitektur	RDNA4
Generation	RX 9000
Föregående generation	RX 7000
Gränssnitt	PCIe 5.0 x16

Namn	Navi 48
Tillverkare	TSMC
Processnod	4 nm
Transistorer	53900 million
Chipstorlek	357.0 mm²
Densitet	151.0 /mm²

Teknologi	GDDR6
Storlek	16 GB
Buss	256 bit
Infinity Cache	64 MB
Bandbredd	644.6 GB/s
Hastighet	20.1 Gbps

Basfrekvens	1870 MHz 1660 MHz
Spelklockfrekvens	2570 MHz 2400 MHz
Boostfrekvens	3100 MHz 2970 MHz
Minnefrekvens	2518 MHz

Kärnor	4096
TMU	256
ROP	128

8-pin	3
TDP	304 w
Rekommenderad strömförsörjning	800 w 750 w

DisplayPort	3 2.1a
HDMI	1 2.1b
HDCP	2.3

Slot	3.6
Längd	360 mm
Höjd	155 mm
Bredd	72 mm
