Grafikkort
| Kärna | |
|---|---|
| Namn | Navi 31 |
| Tillverkare | TSMC |
| Processnod | 5 nm |
| Transistorer | 57700 million |
| Chipstorlek | 529.0 mm² |
| Densitet | 109.1 /mm² |
| GPU-kärnkonfiguration | |
|---|---|
| Kärnor | 5375 |
| Compute Units | 84 |
| TMU | 336 |
| ROP | 192 |
| RT-kärnor | 84 |
| Minne | |
|---|---|
| Teknologi | GDDR6 |
| Storlek | 20 GB |
| Buss | 320 bit |
| Infinity Cache | 80 MB |
| Bandbredd | 800.0 GB/s |
| Hastighet | 20.0 Gbps |
| Klockfrekvenser | |
|---|---|
| Basfrekvens | 1500 MHz |
| Spelklockfrekvens | 2175 MHz |
| Boostfrekvens | 2535 MHz 2394 MHz |
| Minnefrekvens | 2500 MHz |
| Ström | |
|---|---|
| 8-pin | 3 |
| TDP | 300 w |
| Rekommenderad strömförsörjning | 750 w 700 w |

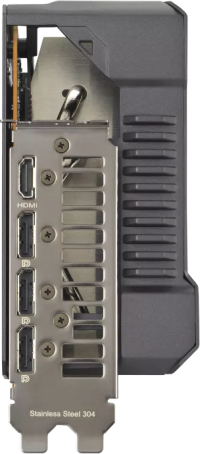

| Bildutgång | |
|---|---|
| DisplayPort | 3 2.1 |
| HDMI | 1 2.1 |
| HDCP | 2.3 |
| Dimensioner | |
|---|---|
| Slot | 3.7 |
| Längd | 352.9 mm |
| Höjd | 158.2 mm |
| Bredd | 72.6 mm |
| Grafikkort▲ | Pris▲ | Boostfrekvens▲ | Slot▲ | Längd▲ | Höjd▲ | Bredd▲ |
|---|---|---|---|---|---|---|
| 2535 MHz +5.9% | 2.8 | 344 mm | 128 mm | 55 mm | ||
| 2400 MHz +0.3% | 2.6 | 276.4 mm | 112.6 mm | 51.2 mm | ||
| 2500 MHz +4.4% | 3.1 | 320 mm | 118.5 mm | 62 mm | ||
| 2400 MHz +0.3% | 2.6 | 276.4 mm | 112.7 mm | 51.25 mm | ||
| 2535 MHz +5.9% | 3.7 | 352.9 mm | 158.2 mm | 72.6 mm | ||
| 2450 MHz +2.3% | 2.9 | 330 mm | 140 mm | 57.6 mm |
