Grafikkort
| Information | |
|---|---|
| Plattform | Consumer |
| Arkitektur | Ampere |
| Generation | GeForce RTX 30 |
| Föregående generation | GeForce RTX 20 |
| Nästa generation | GeForce RTX 40 |
| Gränssnitt | PCIe 4.0 x8 |
| Maxtemperatur | 93 C |
| Kärna | |
|---|---|
| Namn | GA107 |
| Tillverkare | Samsung |
| Processnod | 8 nm |
| Transistorer | 8700 million |
| Chipstorlek | 200.0 mm² |
| Densitet | 43.5 /mm² |
| GPU-kärnkonfiguration | |
|---|---|
| Kärnor | 2304 |
| TMU | 74 |
| ROP | 32 |
| Minne | |
|---|---|
| Teknologi | GDDR6 |
| Storlek | 6 GB |
| Buss | 96 bit |
| Bandbredd | 168.0 GB/s |
| Hastighet | 14.0 Gbps |
| Klockfrekvenser | |
|---|---|
| Basfrekvens | 1042 MHz |
| Boostfrekvens | 1537 MHz 1470 MHz |
| Minnefrekvens | 1750 MHz |
| Ström | |
|---|---|
| TDP | 70 w |
| Rekommenderad strömförsörjning | 450 w 300 w |

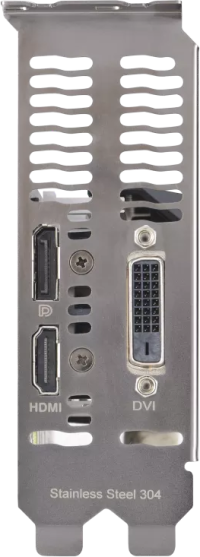

| Bildutgång | |
|---|---|
| DisplayPort | 1 1.4a |
| HDMI | 1 2.1 |
| HDCP | 2.3 |
| DVI | 1 |
| Dimensioner | |
|---|---|
| Slot | 2 |
| Längd | 182 mm |
| Höjd | 69 mm |
| Bredd | 40 mm |
| Grafikkort▲ | Pris▲ | Boostfrekvens▲ | Slot▲ | Längd▲ | Höjd▲ | Bredd▲ |
|---|---|---|---|---|---|---|
2 190 kr NetOnNet.se | 1537 MHz +4.6% | 1.9 | 201 mm | 120 mm | 37 mm | |
| 2 429 krKomplett.se | 1477 MHz +0.5% | 1.8 | 191 mm | 111 mm | 36 mm | |
2 509 kr Proshop.se | 1470 MHz | 2 | 222 mm | 120 mm | 40 mm | |
| 2 606 krProshop.se | 1492 MHz +1.5% | 2.1 | 174 mm | 69 mm | 42 mm | |
| 1 890 krNetOnNet.se | 1477 MHz +0.5% | 1.8 | 191 mm | 111 mm | 36 mm | |
| 1477 MHz +0.5% | 2 | 161.9 mm | 111.2 mm | 40.2 mm | ||
| 2 539 krProshop.se | 1492 MHz +1.5% | 2.1 | 189 mm | 109 mm | 42 mm | |
| 2 889 krElgiganten.se | 1537 MHz +4.6% | 2 | 182 mm | 69 mm | 40 mm | |
| 2 624 krProshop.se | 1470 MHz | 2 | 150.8 mm | 115.1 mm | 39.2 mm | |
| 1777 MHz +20.9% | 2 | 222 mm | 120 mm | |||
| 1507 MHz +2.5% | 2.1 | 205 mm | 109 mm | 42 mm | ||
| 1477 MHz +0.5% | 1.8 | 181 mm | 69 mm | 36 mm | ||
| 1470 MHz | 2 | 186.2 mm | 113 mm | 38.6 mm | ||
| 1500 MHz +2.0% | 2 | 201 mm | 120 mm | 37 mm |
